NoodlesBowl React Native app - A smart, tangled web of live conversation.

The Challenge

The assignment was to create a cross-platform chat app using React Native and Expo, backed by a real-time data store. It needed to:

• Let users join a chat quickly without a complex signup,
• Persist and sync messages in real time,
• Support media (images) and location sharing,
• Handle going offline and coming back gracefully,
• And respect accessibility basics on mobile.

The “hidden” challenge was to make all of this feel coherent in a small codebase: manageable files, clear data flow, and behavior that makes sense from a user’s point of view.

Objectives and Success Criteria

Within that brief, I set a few concrete goals:

• Fast onboarding
  Let users choose a display name and theme color, then start chatting in a couple of taps — no traditional email/password registration.

• Reliable real-time chat
  Use Firebase Firestore to sync messages across devices, with a UI that updates smoothly as messages come in.

• Rich messages, simple controls
  Support text, images and location sharing from a compact, discoverable “+” button in the input area.

• Offline-friendly behavior
  Cache recent messages locally and make it clear when the app is offline, so users aren’t surprised by missing or unsent messages.

• Accessible by design
  Provide meaningful accessibility labels, contrast-aware color choices and screen reader hints that make the app usable beyond perfect visual and motor conditions.

I considered the project successful if:

• Chatting felt responsive and predictable on both iOS and Android simulators/devices,
• The app handled network drops and reconnections without corrupting the chat history,
• The codebase clearly showed how messages flow from UI → Firebase → UI,
• And I could walk through the accessibility decisions in a way that made sense to a reviewer.

• Screens and navigation
  The app is split into two main screens:

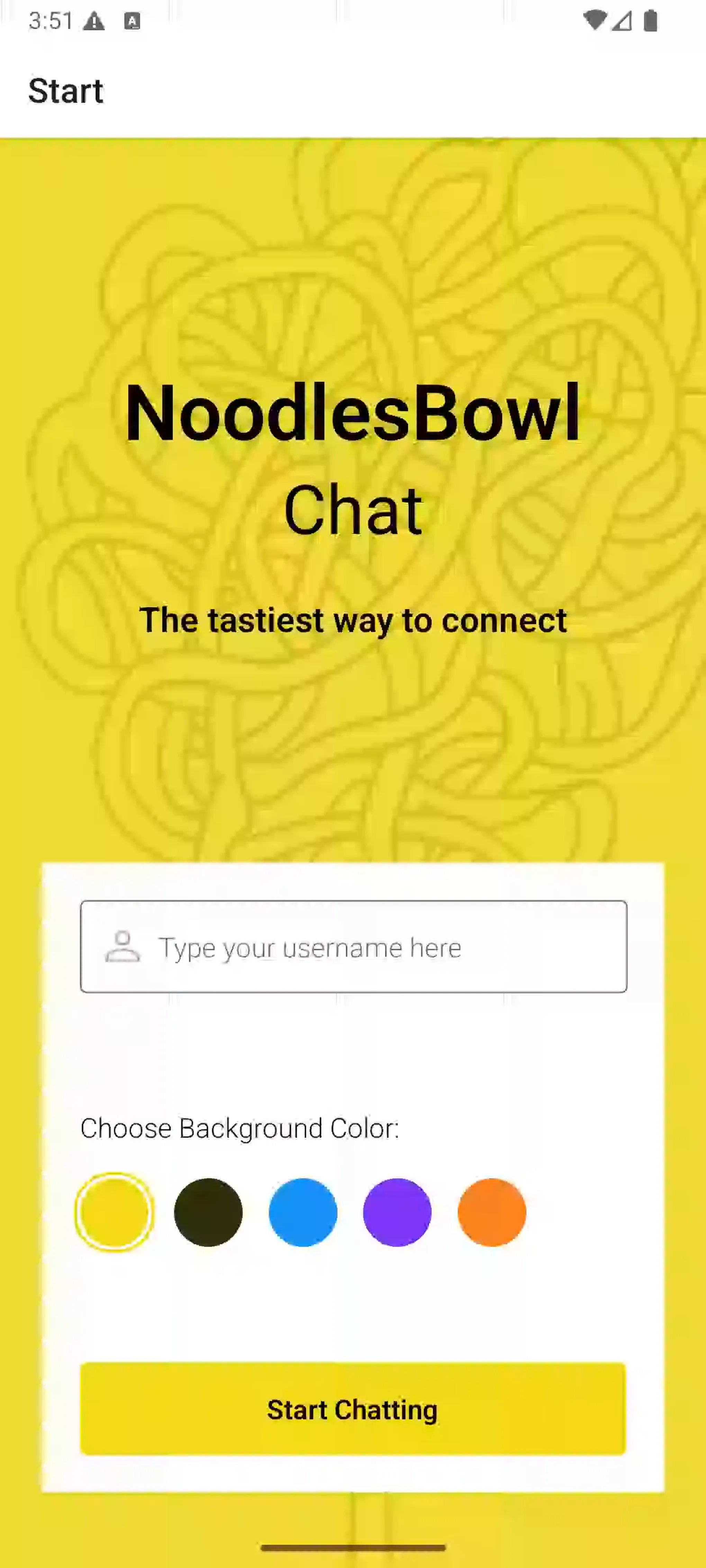

  • Start – where users enter a display name and choose a background color.
  • Chat – the main chat room interface.
    React Navigation manages the stack so users move from Start → Chat with the chosen settings passed as route parameters.

• Firebase integration
  A shared firebase.js module initializes Firebase services:

  • Anonymous authentication for quick entry,
  • Firestore for real-time messages,
  • Storage for user-uploaded images.
    Messages are stored in a single Firestore collection, with each document containing text, metadata, optional image URLs and optional coordinates.

• Chat UI layer
  The chat interface is built on react-native-gifted-chat, customized to:

  • Render text messages,
  • Display images from Firebase Storage,
  • Show map previews for messages with location data,
  • Use the user’s chosen background color while keeping text readable.

• Offline support & network handling
  Recent messages are cached via AsyncStorage, and @react-native-community/netinfo is used to:

  • Detect when the device goes offline,
  • Show an appropriate UI state,
  • Avoid trying to send messages when there’s no connection.

• Configuration & builds
  Firebase credentials are injected via .env into app.config.js under expo.extra.firebase, and the project is configured for EAS builds (development / preview / production) using eas.json.

Phase 1 – Defining flows and data model

I started by mapping the core user flow:

1. Open the app → see the Start screen.
2. Enter a name and choose a background color.
3. Tap “Start Chatting” → navigate to the Chat screen.
4. Send and receive messages (text, image, location) in real time.

Based on that, I defined a minimal message shape for Firestore: text (optional), createdAt, user information, and optional image and location fields. This keeps the data model compact but expressive enough to support the required features.

Key learning: Even simple chat apps benefit from an explicit, minimal message schema before touching the UI.

Phase 2 – Screen structure and navigation

Next, I wired up navigation:

• A stack navigator with Start and Chat screens,
• Route params carrying the user’s name and chosen color into the chat screen,
• Basic header and safe-area handling to respect device notches and insets.

At this stage, the Chat screen used local dummy data to validate the layout and get GiftedChat configured.

Key learning: Validating the UI with fake data first keeps you from debugging the backend and layout at the same time.

Phase 3 – Real-time chat with Firebase

With the screens in place, I connected the app to Firebase:

• Initialized Firebase in firebase.js,
• Used anonymous authentication to create a lightweight user identity,
• Subscribed to a Firestore collection for messages, ordered by timestamp,
• Mapped Firestore documents into GiftedChat’s expected format.

New messages are written to Firestore and appear on all connected clients via the real-time listener.

Key learning: Firestore’s real-time listeners pair nicely with GiftedChat’s expectation of an array of messages; the main task is keeping the mapping clean and predictable.

Phase 4 – Media and location sharing

I then added richer message types:

• Integrated Expo Image Picker to let users:
  • pick from the camera roll,
  • or capture a new photo,
• Uploaded images to Firebase Storage and attached the resulting URL to the message,
• Used Expo Location to get the user’s current coordinates and send them as part of a message,

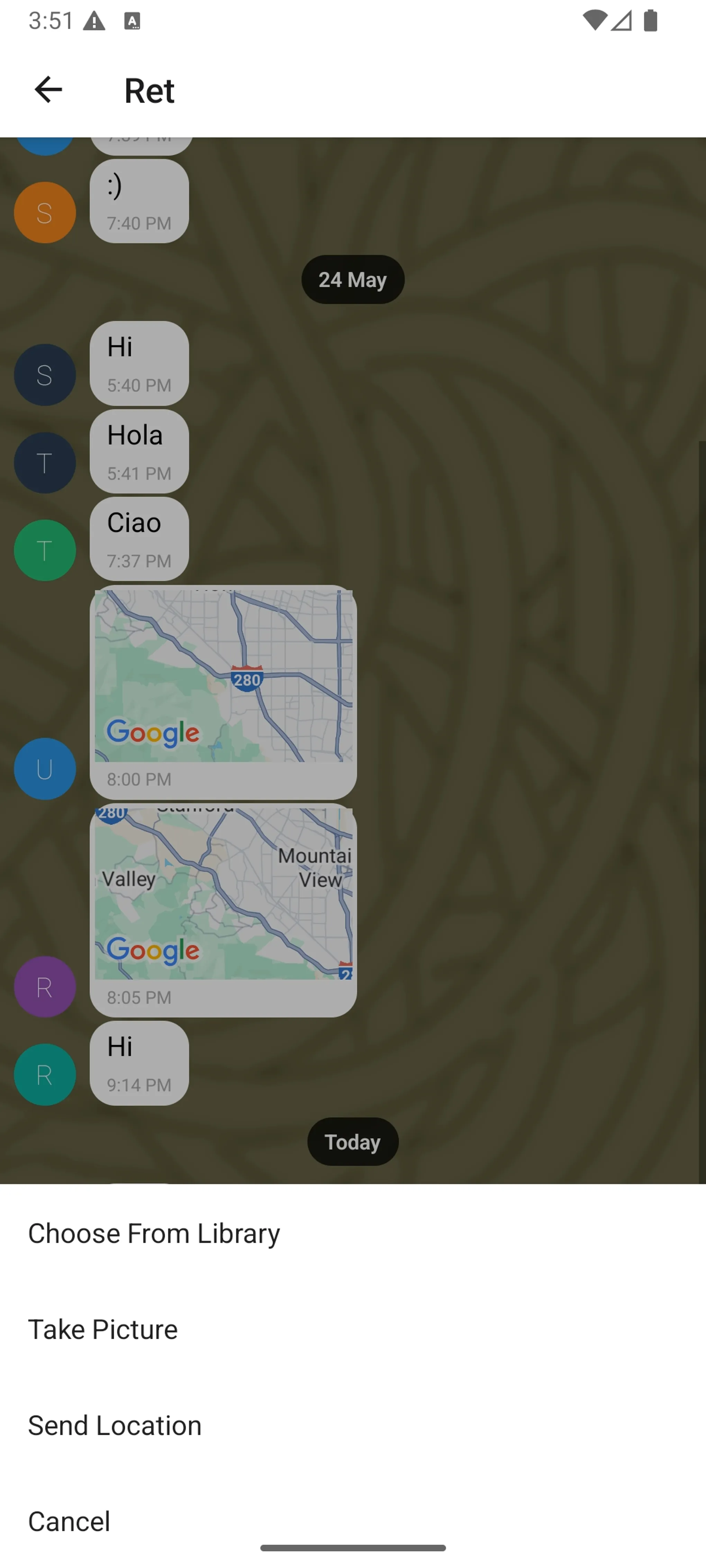

• Customized GiftedChat’s render functions so:

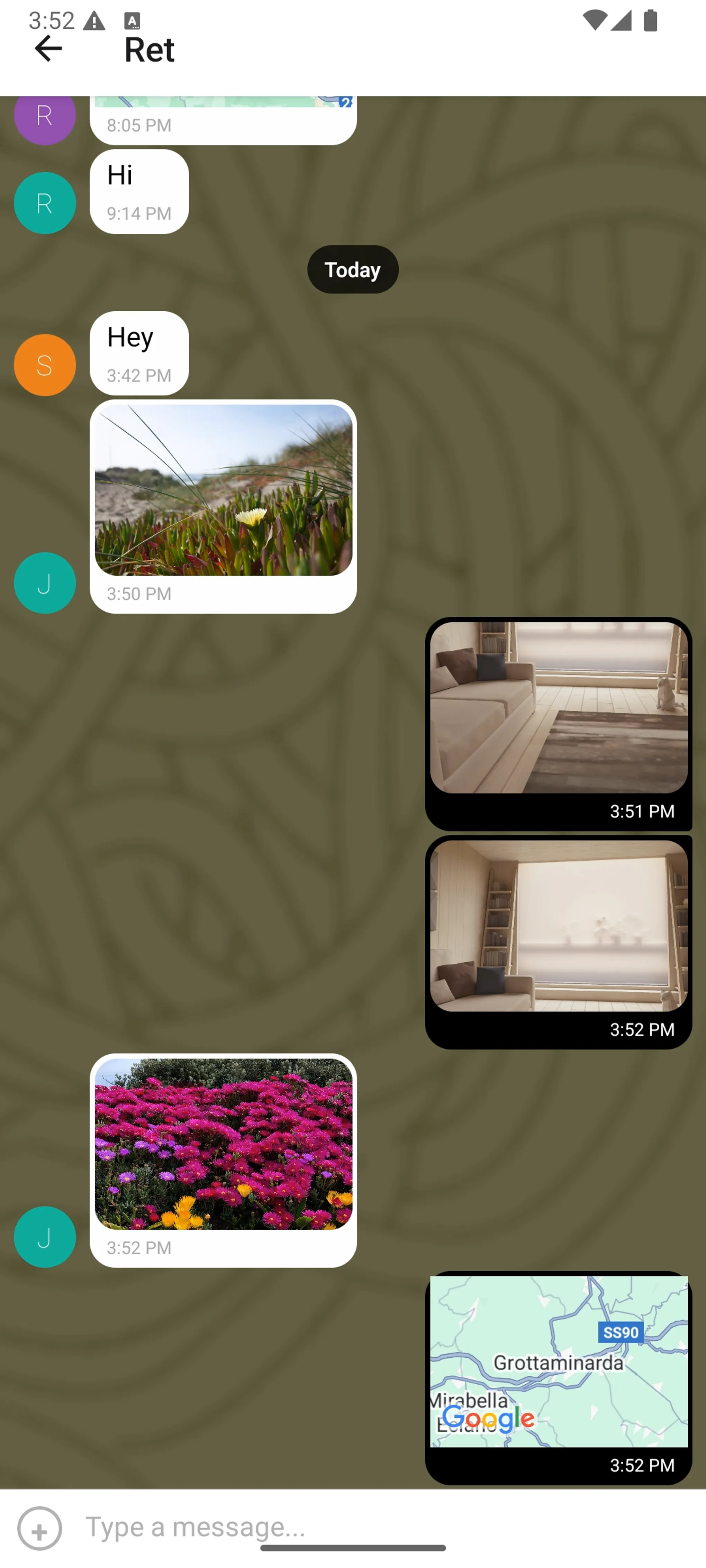

  • image messages display as tappable image bubbles,
  • location messages show an embedded map preview.

Key learning: When adding media, a big part of the work is deciding how to represent it in the message schema so the UI and backend stay in sync.

Phase 5 – Offline support and network handling

To make NoodlesBowl usable on unstable mobile networks, I focused on offline behavior:

• Cached the latest messages in AsyncStorage,
• Loaded cached messages on app startup before Firestore syncs,
• Used @react-native-community/netinfo to:
  • detect when the app goes offline,
  • disable sending when there’s no connection,
  • and show a visual indication of offline status.

When the device reconnects, Firestore syncs any missed messages and the UI updates accordingly.

Key learning: Even minimal offline support makes a big difference for perceived reliability in a mobile chat app.

Phase 6 – EAS builds and device testing

Finally, I configured EAS for building and testing on real devices:

• Defined build profiles in eas.json for development and production,
• Verified that environment variables injected via app.config.js worked correctly in built apps,
• Tested on both iOS and Android to confirm layout, permissions (camera, photos, location) and connectivity behavior.

Key learning: Seeing the app on actual hardware changes your sense of performance, legibility and touch targets compared to simulators alone.

I structured manual testing around:

• Core chat flow

  • Start → Chat navigation,
  • Sending and receiving text messages between two devices/simulators,
  • Message ordering and timestamps.

• Media and location

  • Picking images from the library and taking photos with the camera,
  • Confirming images upload correctly and appear on other devices,
  • Granting and denying location permissions and verifying the app’s behavior in both cases.

• Offline scenarios

  • Turning on airplane mode while in the chat,
  • Verifying that cached messages remain visible,
  • Confirming that sending is blocked or clearly fails while offline,
  • Reconnecting and checking that new messages sync correctly.

• Cross-platform checks

  • Running through the same flows on iOS and Android,
  • Checking layout, keyboard behavior and safe-area handling on each.

If I revisit this project, one of my first additions would be basic automated tests around message rendering and network state handling, plus E2E-style checks for the main chat flow.
